It’s 1945 and WWII has ended. Germany starts to slowly rebuild out of what was left from the bombed out cities. The Occupational Forces restricted passenger car manufacturing to a 4-cylinder engine and Mercedes Benz started where they left off in 1939 with their 4-cylinder 170V model.
1951 manufacturing rules were relaxed and Mercedes Benz showed the world their model 220 W187; a 6-cylinder car with a lot of design features including an overhead valve engine with overhead cam, one shot lube system (where you press the hydraulic lube piston every 600 KM and pronto the car was ‘lubed’ again – all the ball joints and drive-shaft points).
General Information:
The W187 was Mercedes-Benz's line of six-cylinder luxury cars in the early-1950s. It was sold as a sedan, coupe, and cabriolet, all with the 220 model name. Introduced at the Frankfurt Motor Show in 1951, the 220 sedan was replaced by the W105/W180 line in 1953. The coupe and cabriolet lasted until August 1955.
All 220s used a 2.2 L (2195 cc/133 in³) straight-6 engine producing 80 hp DIN (86 SAE) (60 kW). The styling was similar to the 170 S except that the headlights were integrated into the fenders for a slightly more modern look. Two different cabriolet models were built, but they only sold 1,278 and 997 for the "A" (two-door) and "B" (four-door) versions, respectively.
The saloon went out of production in May, 1954; the Cabriolet models soldiered on for another 15 months, now equipped with the new W180 220a's engine. Also, a Cabriolet A-based Coupé became available at that time.
Models:
1951–1954 220 sedan
1951–1955 220 cabriolet (A and B models)
1954–1955 220 coupe
Specifications:
Years of Manufacture: 1951 - 1956
Number Built: 44,451
Price at Introduction:
220 Sedan: DM 11,925
220 Convertible: DM 15,160
220 2-3 seater Convertible: DM 18,860
220 2-3 seater Coupe: DM 20,850
220a Sedan (1954): DM 12,500
220 Convertible and Coupe from 1954: DM 21,500
220 Convertible and Coupe from 1954: DM 21,500
Date of Introduction:
July, 1951
Chassis/Body:
X Shaped Oval Tube Chassis
Exterior Dimensions 220:
Total Length Sedan: 177.4 inches (4507mm)
Total Length Convertible: 178.7 inches (4538mm)
Total Width: 66.3 inches (1685mm)
Height at Kerb Weight Sedan: 63.4 inches (1610mm)
Height at Kerb Weight Convertible: 61.4 inches (1560mm)
Wheelbase: 112.0 inches (2845mm)
Front Track: 51.6 inches (1310mm)
Rear Track: 56.5 inches (1435mm)
Exterior Dimensions 220a:
Total Length Sedan: 185.6 inches (4715mm)
Total Length Convertible: 183.9 inches (4670mm)
Total Width: 68.5 inches (1740mm)
Height at Kerb Weight Sedan: 61.42 inches (1560mm)
Height at Kerb Weight Convertible: 60.2 inches (1530mm)
Wheelbase: 111.0 inches (2820mm)
Front Track: 56.3 inches (1430mm)
Rear Track: 57.7 inches (1470mm)
Kerb Weight:
220 Sedan: 2970lb (1350kg)
220 Convertible: 3168lb (1440kg)
220a Sedan: 2860lb (1300kg)
220a Convertible: 2860lb (1300kg)
Fuel Tank:
220: 17.2 gallons (65.0 litres)
220a: 16.9 gallons (64.0 litres)
Turning Circle:
220: 39.37ft (12.0 metres)
220a: 38.39ft (11.7 metres)
220a Convertible: 37.4ft (11.4 metres)
Instruments:
Speedometer
Petrol gauge
Temp warning lamp
Oil warning lamp
Transmission (Manual, 4 Speed) 220:
1st: 3.68:1
2nd: 2.25:1
3rd: 1.42:1
4th: 1.00:1
Transmission (Manual, 4 Speed) 220a:
1st: 3.40:1 (later 3.52)
2nd: 2.32:1
3rd: 1.52:1
4th: 1.00:1
Clutch:
Single cushion disc, dry plate clutch
Rear Axle Ratio:
220: 4.44:1
220a: 4.11:1 (later 4.10:1)
Engine Speed at 100 km/h:
3470 rpm
0-60 mph (0-97 km/h):
220: 21.0 seconds (approx)
220a: 19.0 seconds (approx)
Maximum Speed:
220: 141 km/h (87.5 mph)
220a: 150 km/h (93.0 mph)
Engine 6 Cylinder M 180 220:
Capacity: 2195cc
Type: Conventional, watercooled four stroke, reciprocating piston type with 6 cylinders
Configuration: Front mounted, longitudinal, inline
Head: Pushrod and rocker actuated ohv with one valve per cylinder
Fuel System: Dual downdraft Solex 30 PAAJ carburetor
Bore and Stroke: 3.15 x 2.87 inches (80 x 72.8mm)
Power: 80 hp @ 4850rpm
Torque: 14.5 mkg @ 2500rpm (104.9 ft/lb)
Compression Ratio: 6.5:1
Engine 6 Cylinder M 180 220a:
Capacity: 2195cc
Type: Conventional, watercooled four stroke, reciprocating piston type with 6 cylinders
Configuration: Front mounted, longitudinal, inline
Head: Pushrod and rocker actuated ohv with one valve per cylinder
Fuel System: Dual downdraft Solex 32 PAATJ carburetor
Bore and Stroke: 3.15 x 2.87 inches (80 x 72.8mm)
Power: 85 hp @ 4800rpm
Torque: 16.0 mkg @ 2400rpm (116.0 ft/lb)
Compression Ratio: 7.6:1
Ignition and Electrical:
12 volt
Coil and alternator
Exhaust:
Single tail-pipe
Suspension:
Front: Independent type with coil springs
Rear: Swing axle with coil springs
Steering:
220: Worm and ball, ratio 13.9:1 (2.75 turns)
220a: Worm and ball, ratio 21.4:1 (4.00 turns)
Brakes:
220: Drum, 736 cm sq. 114.0 sq in.
220a: Drum, 1064 cm sq. 164.9 sq in.
Wheels:
220: 15" Pressed steel disc wheels
220a: 13" Pressed steel disc wheels
Tyres:
220: 6.40 x 15
220a: 6.70 x 13
* * *
http://www.170220.org/pdf/220_Workshop_Manual.pdf აქ არის 343 და 345 გვერდი
This post has been edited by Chipilo on 6 Mar 2013, 07:46

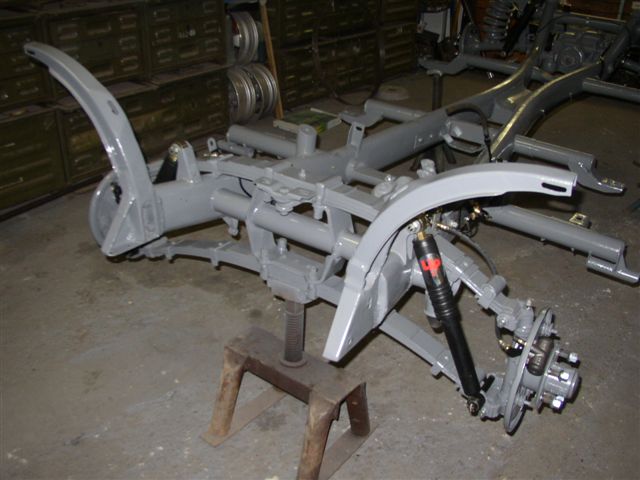

მიმაგრებული სურათი (გადიდებისთვის დაუწკაპუნეთ სურათზე)
