ვყიდი ციფრულ ოსცილოგრაფს

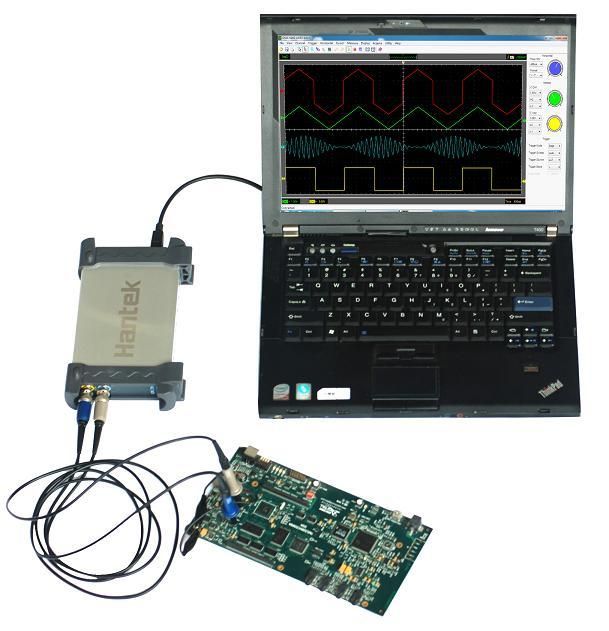

HANTEK 6022BE
http://www.amazon.com/gp/product/B00BSQZ3M...0?ie=UTF8&psc=1*Input:
Max. sample rate:Real-time sampling:48MS/s
Channels:2Channels
Bandwidth:20MHz(-3dB)
Vertical resolution:8bits/channel
Gain range:20mV~5V/div@x1 probe(20mV,50mV,100mV,200mV. 500mV,1V,2V,5V/div 1,2,5sequence).200mV~50V/div@x10 probe.2V~500V/div@x100 probe.20V~5KV/div@x1000 probe
Range:8divisions
Offset level:+/-4divisions
Coupling:DC
Offset increments:0.02div
Impedance:1M ohm
DC accuracy:+/-3%
Input protection:-5V~+5V(without external attenuation)
Display Mode:Y-T,X-Y
*Timebase:
Timebase range:1ns/div~5000s/div(1ns,2ns,5ns,10ns,20ns,50ns,100ns,200ns,500ns,1us,2us,5us,10us,20us,50us,100us,200us,500us,1ms,2ms,5ms,10ms,20ms,50ms,100ms,200ms,500ms,1s,2s,5s,10s,20s,50s,100s,200s,500s,1000s,2000s,5000s/div 1,2,5 sequence)
Acquisition mode:Realtime sampling.
Range:10 divisions
Buffer Size:MAX.1M samples
*Trigger
Type:Edge trigger:Rising edge,falling edge
Mode:Auto,Normal and Single
Autoset:Yes
Range:8 divisions
Trigger level:+/-4 divisions
Settabillity:0.02div increments
*Math
Measurements:Vp-p,Vmax,Vmin,Vmean,Vrms,Vamp,Vtop,Vbase,Vmid,positive overshoot,negative overshoot,cycle mean,cycle RMS,period,frequency,positive pulse width,negative pulse width,rise time(10%~90%),fall time(10%~90%),positive duty cycle negative duty cycle
Math:Addition,Subtraction,Multiplication,Division
FFT:Rectangular,Hanning,Hamming,Blackman Window
*Square Output
Type:Square
Volt:DC 3.3V(+/-10mV)
Frequency:100Hz~50KHz(+/-2%)
*Physical
Interface:Universal Serial Bus(USB 2.0)
Dimensions:200x120x35mm
*Support: Windows NT/2000/XP/VISTA/7
გახსნილია მაგრამ არ მიხმარია პრაქტიკულად, 2 დღეა რაც ჩამომივიდა.
ვყიდი თავის ფასში 80$-ად, გზის ფულის გარეშე
·
