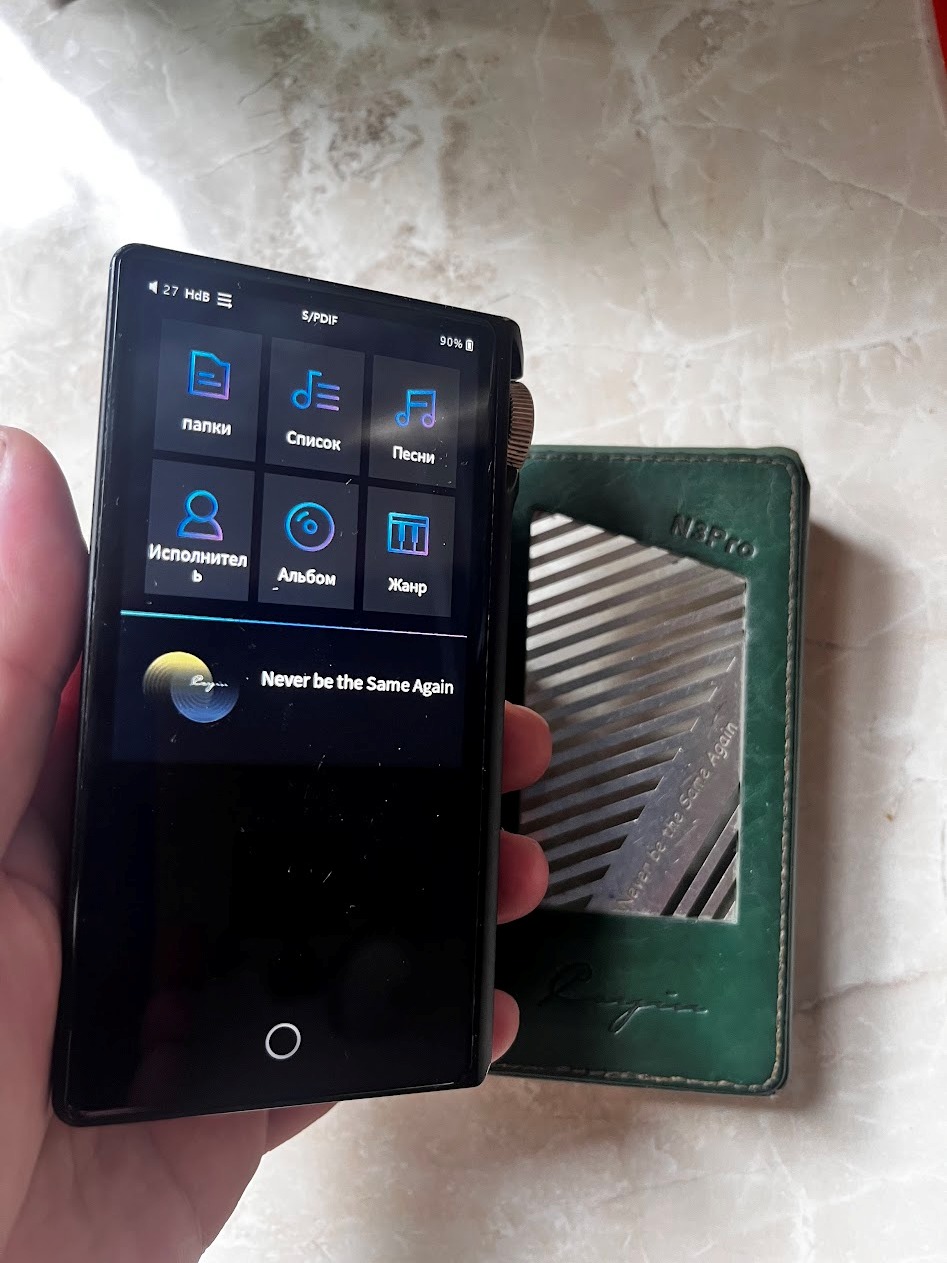

იყიდება Hi-Fi პლეერი: Cayin N3 Pro.
Technical Details:
DAC
AK4493EQ x2
MCU
XBurst 1.0GHz,MIPS-based
Vacuum Tube
Raytueon JAN6418×2
Storage
one TF card,upto 1TB
Bluetooth
3v5.0(LDAC,UAT,AAC，SBC)
Display Screen
IPS 3.2”(480 x 360)
USB
Type-C (Digital Audio, charging, OTG)
Touch sensing
Capacitive touch screen
Battery
3.7V 4100mAh
WiFi
IEEE802.11,2.4GHz
Net Weight
195g (士10g)
Dimension
115.2x63.5x18.9(mm)
Freq.Response
20Hz-20kHz(土0.2dB,Fs=192kHz)
Battery Duration
9 Hours - Vacuum Tube @ 3.5mm Single-ended
11 Hours - Solid State @ 3.5mm Single-ended
9 Hours @ 4.4mm Balanced
Testing Condition: Screen off, all wireless disabled, mid gain, volume 30, 32Ohm earphone, playback 44.1kHz WAV music files
Charging Time
~3.5H @Standard Charger (5V-2A)
USB Audio out
Connector: USB-C
PCM:up to 32Bit/768kHz;
DSD : Up to DSD512(Native),DSD256(DoP),PCM 88.2kHz(D2P)
USB Audio DAC
Connector : USB-C, Asynchronous USB Audio Class 2.0
Support Windows(drivers required),Mac OS,Android(partial)
PCM: up to 32Bit/384kHz
DSD:up to DSD256 (Native),DSD128 (DoP)
S/PDIF , Coaxial
Connector : USB-C(75ohm)
PCM:up to 192kHz
DSD:up to DSD64(DoP)
Bluetooth
Transmit Codec: UAT(up to 192kHz),LDAC (up to 96kHz)， AAC(up to 48kHz),sBC (up to 48kHz)
Receive Codec: UAT(up to 192kHz),LDAC (up to 96kHz)， AAC(up to 48kHz),SBC (up to 48kHz)
Power Rating
250mW @32ohm/ Solid State /3.5PO
53mW @150ohm/ Solid State /3.5PO
27mW @300ohm/ Solid State /3.5PO
130mW @32ohm/ Vacuum Tube /3.5PO
30mW @150ohm/ Vacuum Tube /3.5PO
15mW @300ohm/Vacuum Tube /3.5PO
800mW @32ohm/4.4PO
220mW @150ohm/ 4.4PO
110mW @300ohm/ 4.4PO
Output lmpedance
0.6ohm @3.5PO ;
1ohm @4.4PO
THD+N
0.003% (@3.5PO,1kHz,Fs=44.1kHz;20Hz-20kHz, A-Weighted; Solid State)
0.002% (@4.4 PO, 1kHz,Fs=44.1kHz;20Hz-20kHz, A-Weighted; Solid State)
0.0008% (@3.5LO/4.4LO, 1kHz,Fs=44.1kHz; 20Hz-20kHz,A-Weighted)
Dynamic Range
118dB(@3.5PO, Fs=44.1kHz; 20Hz-20kHz,A-Weighted;Solid-State)
119dB (@4.4PO Fs=44.1kHz; 20Hz-20kHz,A-Weighted)
118dB (@3.5LO/4.4LOFs=44kHz;20Hz-20kHz,A-Weighted)
SN Ratio
118dB(@3.5PO, Fs=44.1kHz; 20Hz-20kHz,A-Weighted;Solid-State)
119dB (@4.4PO Fs=44.1kHz; 20Hz-20kHz,A-Weighted)
118dB (@3.5LO/4.4LOFs=44kHz;20Hz-20kHz,A-Weighted)
Channel Separation
75dB/100dB (@3.5PO/3.5LO 1kHz,Fs=44.1kHz)
110dB (@4.4PO/LO 1kHz,Fs=44.1kHz)
Output Level
2.0V/1.5V/1.0V(@10K ohm, 3.5LO)
4.0V/3.oV/2.oV(@600ohm,4.4LO)
მიმაგრებული სურათი (გადიდებისთვის დაუწკაპუნეთ სურათზე)
